Wood CNC Router

5 Lakhs INR

Product Details:

  • Product Type CNC Router
  • Material Other
  • Type Vertical
  • Weight (kg) 1500 Kilograms (kg)
  • Automatic Yes
  • Power Source Electric
  • Voltage 220-380V Volt (v)
  • Supply Ability : 10 Unit Per Day
  • Click to view more
X

Price And Quantity

  • 5 Lakhs INR
  • 1 Unit

Product Specifications

  • Other
  • Electric
  • CNC Router
  • 220-380V Volt (v)
  • 1500 Kilograms (kg)
  • Yes
  • Vertical
  • 1300*2500*200

Trade Information

  • Cheque
  • 10 Unit Per Day
  • 30 Days
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • Asia
  • All India

Product Description

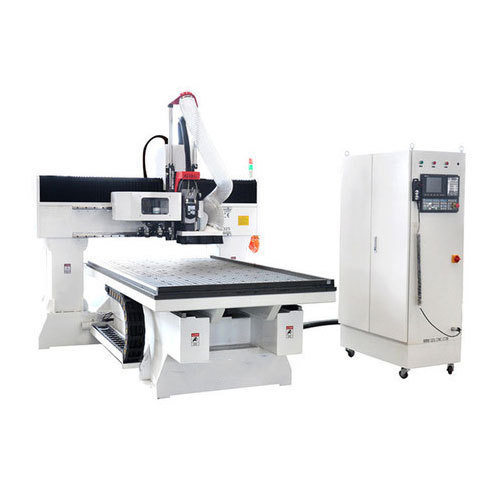

ANGEL CNC WOOD ROUTER

ANGEL CNC ROUTER

1. Entire steel frame structure, high temperature to make the frame regain the same steel feature of high strength, ensure the bed undeforable.

2. Gantry movement style structure, scienti?c and reasonable table design. Optional automatic oil lubrication system, free maintenance.

3. The X-axis and Y-axis are transmitted by the imported gear and rack with high precision. Running more stable and quiet with high speed and great power.

4. The Z-axis is driven by the ball bearing screw rod with original screw nut of European brand. Its travel is up to 200mm.

5. The large-scale straight-liner square guiding track is imported from Taiwan with high steel feature.



The whole steel structure, 300mm wide focus hexapod, rock solid body; vacuum suction stage, gantry widened, large size widening rail, travel up to 220mm ; X- , the Y -axis precision inlet helical gear rack drive, Precision and smooth, Z- axis for the imported ball screw, low-mute; bed CNC precision machining parts well, the whole structure of a reasonable design, matching automatic tooling and automatic fuel supply system, intelligent upgrades, relief maintenance is high quality The choice of large pieces of processing.

Other Specifications
MODEL ELECNC 1325 WOOD ROUTER
Working Area  1300*2500*200
Running Speed  25m/min
Spindle Motor 3KW / 6KW / 9KW , Spindle
Spindle Speed  0-18000 RPM / 0-24000 RPM / 0-36000
Operating System  NK 105 Controller System
Drive System Yako 2811 Big Drive With Stepper Motor
Z MAXFeed - in  120mm
Holding  T - Slot
Optional Device Dust collector (Single or Double Bag )
Command Code  Gcode (*uoo, *nc, *mmg, *plt)
Applied Material  Acrylic, MDF, Hard Wood, PVC
Oil supply system Automatic Oil supply system
