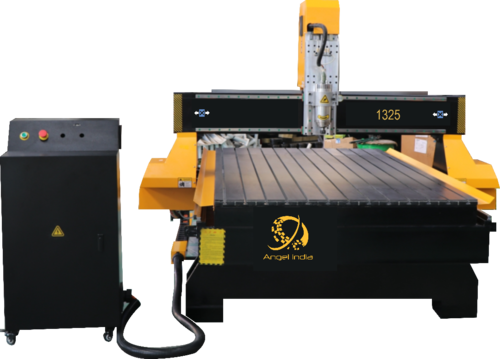

Woodworking CNC Router

Woodworking CNC Router

650000 INR/Set

Product Details:

  • Product Type CNC ROUTER
  • Type CNC Router
  • Automatic No
  • Power Source Electric
  • Motor AC Motor
  • Feature High Precision, High Speed, Low Energy Consumption
  • Supply Ability : 10 Set Per Week
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 650000 INR/Set

Product Specifications

  • CNC ROUTER
  • No
  • Electric
  • CNC Router
  • AC Motor
  • High Precision, High Speed, Low Energy Consumption

Trade Information

  • 10 Set Per Week
  • 1 Week
  • Asia

Product Description

Aiming at innovation, our firm is engaged in offering Woodworking CNC Router. It is manufactured by our vendors utilizing sophisticated tools, metallic sheets and other basic raw materials at the end of our vendors. Offered router is suitable for printing applications, signage and other laser solutions. We have a team of well-trained quality controllers, who check the offered machine on different parameters to ensure flawlessness. Offered Woodworking CNC Router is known for its user-friendly operations, low maintenance, high efficiency, prolonged functional life and easy installation.


Feature of Woodworking CNC Router:

  • Entire steel frame structure, high tempeWoodworking CNC Routerrature to make the frame regain the same steel feature of high strength, ensure the bed undeforable
  • Gantry movement style structure, scientific and reasonable table design. Optional automatic oil lubrication system, free maintenance
  • The machine bed is precisely processed mechanically, servo driving system of Japanese brand. Optional ATC with the highest control system from Taiwan
  • The X-axis and Y-axis are transmitted by the precise gear and rack imported from Switzerland. Running more stable and quiet with high speed and great power
  • The Z-axis is drived by the ball bearing screw rod with original screw nut of European brand. Its travel is up to 220mm
  • The large-scale straight-liner square guiding track is imported from Taiwan with high steel feature
  • Vacuum and adsorption working table, big flux vacuum pump
Main Technical Parameters:

Model

HM-1325

Outer Dimension

3000x2100x2250mm

Machining Area

1300x2500mm

Running Speed

60m/min

Spindle Motor

(Made in Italy)
5.5kw~13.5kw (Optional)

Z MAX Feed in

220mm

Repeated Location

0.025mm

Cutter

3, 4, 6, 12.7 (Optional)

Power Supply

AC380V/50~60HZ

Weight

2.5T


Application Domain:

It adopts for wood processing, furniture processing, advertising, decoration, model manufacturing, art and crafts industry and so on. The machine is wildly applied in the fine engraving, cutting, hollowing out and drilling on wood, marble, granite, organic board, high-density plate, acrylic, PVC and all kinds of characters, graphs, images, trademarks and so on.
